Wood fiber panels with density 160 Kg/m³.
Fibertherm Internal 160 is a plasterable wood fiber panel used for thermal insulation system of internal walls. The panels have reduced thickness to occupy the smallest possible space, high compressive strength and are water-repellent.
The wood fiber panel FiberTherm Internal 160 is an insulator for the inside of the building walls: reducing the costs of heating can improve the lifestyle. The applications are many, compared to other types of internal insulation is also the most economical solution.
There are good reasons to realize an internal insulation: in case the façades can not be modified, if you want to isolate an apartment, or if the external walls of an old building need better insulation. In addition to this, you can improve the performance of internal insulation of poorly used buildings or rooms, such as holiday homes, common rooms or guest rooms - through the internal insulation, the rooms can heat up quickly. Furthermore, the installation of an internal insulation is often easier.
Scaffolding is not used and it is possible to intervene independently from atmospheric conditions. However, external isolation is still more effective. And that is why we recommend the use of internal insulation only in the cases described above.

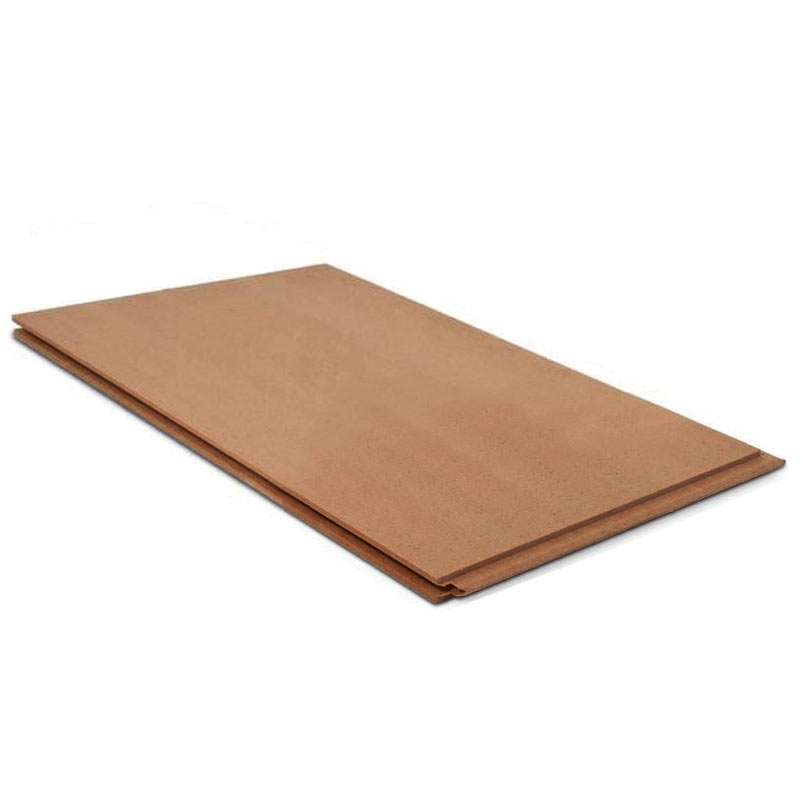

The insulating wood fiber panels FiberTherm Internal 160 are ideal even in situations of limited space. Available with male / female profile or with sharp and flat edge. Density equal to 160 Kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines.
The insulating wood fiber panels FiberTherm Internal 160 diffuse the steam and allow the capillary transport of the steam. FiberTherm Internal 160 protects the living area from molds as it provides an optimal moisture balance to create an environment in which mold is not formed.
The insulating wood fiber panel FiberTherm Internal 160 has the following characteristics:
• ecologic internal insulation;
• ideal for masonry and restoration of wood cladding;
• excellent humidity control - maximum safety;
• it can be used without additional anti-steam layers;
• brings a truly healthy and natural internal atmosphere;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.
|40 mm||1200 x 380||6,40||84||38,3||approx.260|
|60 mm||1200 x 380||9,60||57||26,0||approx.250|
|80 mm||1200 x 380||12,80||42||19,2||approx.270|
|Thickness||Size mm||Real surface mm||kg/m²||Pan./pallet||m²/pallet||kg/pallet|
|40 mm||1200 x 380||1186 x 366||6,40||84||38,3||approx.260|
|60 mm||1200 x 380||1186 x 366||9,60||54||24,6||approx.250|
|Fire reaction according to EN 13501-1||E|
|Coefficient of thermal conductivity λD W/(m∗K)||0,038|
|Specific heat J/(kg∗K)||2.100|
|Resistance to vapor diffusion μ||5|
|sd values (m)||0,2 (40) / 0,3 (60) / 0,4 (80)|
|Thermal resistance RD (m²·K)/W||1,0 (40) / 1,5 (60) / 2,0 (80)|
|Compression resistance (kPa)||50|
|Bending resistance [(kPa·s)m²]||≥100|
|Panels identification||WF-EN 13171-T4
|Waste code (EAK)||030105/170201|
