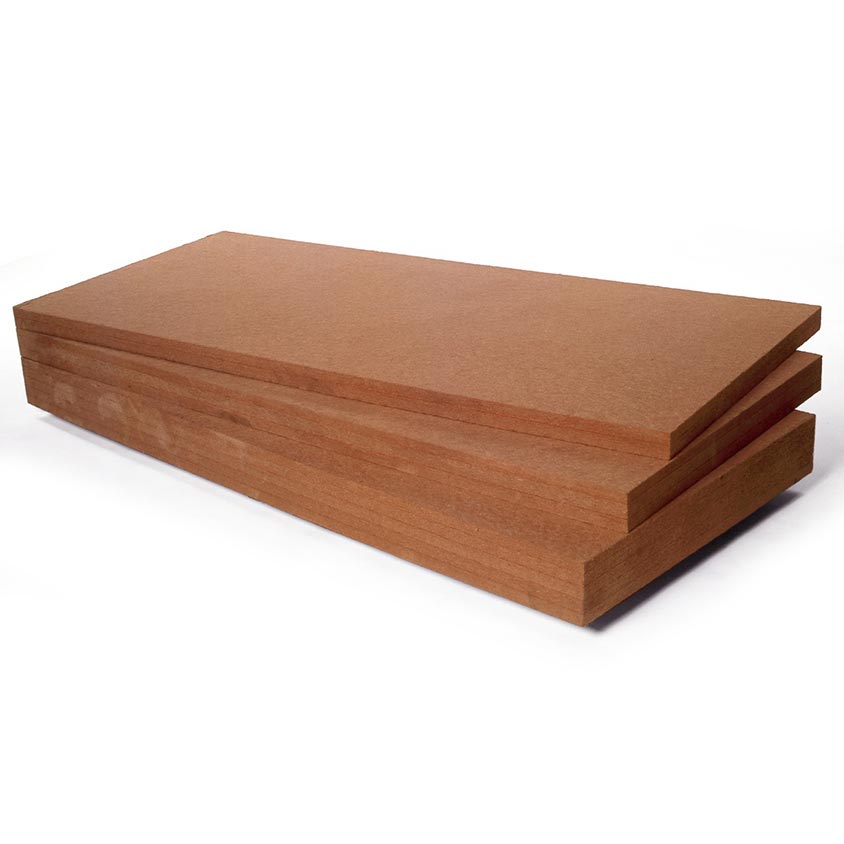

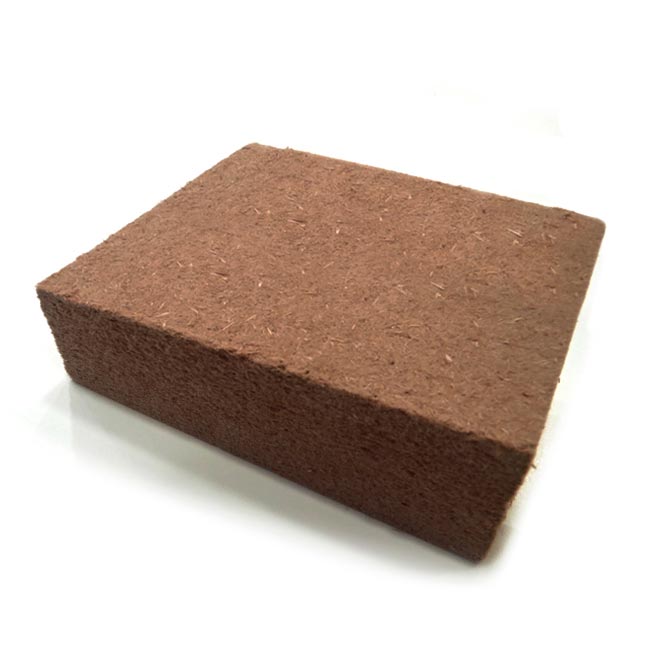

Wood fiber panels with a density of 140 Kg/m³.

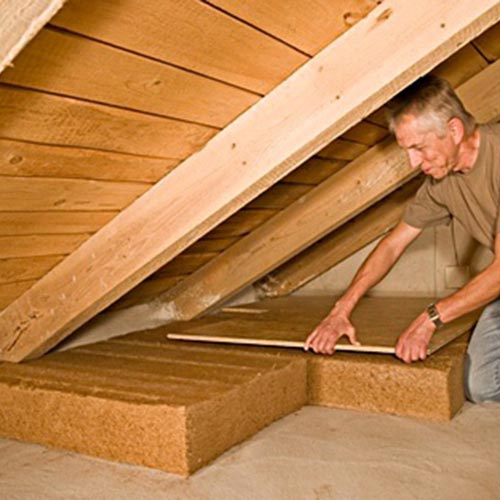

Fibertherm Roof dry 140 is a wood fiber panel for thermal insulation for ceilings and flat or pitched roofs. Ideal for roof insulation in wooden buildings, but also in renovations and new traditional buildings.
The wood fiber panel FiberTherm Roof dry 140 is a thermal insulator for extrados of floors and pitched roofs or flat roofs.
The wood fiber panels FiberTherm Roof dry 140 are ideal to insulate flat roofs. They have a density equal to 140kg/m³ and provide an high security due to their water repellent properties.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
The insulating wood fiber panels FiberTherm Roof dry 140 has the following characteristics:
• ideal for the insulation of flat roofs;
• very good thermal insulation in winter and summer;
• high compressive strength;
• high safety for water repellent properties;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.
|60 mm||800 x 800||8,40||38||24,3||approx.237|
|80 mm||800 x 800||11,20||28||17,9||approx.228|
|100 mm||800 x 800||14,00||22||14,1||approx.216|
|120 mm||800 x 800||16,80||18||11,5||approx.209|
|140 mm||800 x 800||19,60||16||10,2||approx.214|
|160 mm||800 x 800||22,40||14||9,0||approx.213|
|180 mm||800 x 800||25,20||12||7,7||approx.204|
|200 mm||800 x 800||28,00||12||7,7||approx.225|
|Fire reaction according to EN 13501-1||E|
|Coefficient of thermal conductivity λD W/(m∗K)||0,040|
|Specific heat J/(kg∗K)||2.100|
|Resistance to vapor diffusion μ||5|
|sd value (m)||0,18(60)/0,24(80)/0,30(100)/
|Thermal resistance RD (m²·K)/W||1,50(60)/2,00(80)/2,50(100)
for 10% of distorsion (N/mm²)
|Compression resistance (kPa)||100|
|Tensile resistance (kPa)||≥10|
|Resistance to airflow [(kPa·s)m²]||≥100|
|Panels identification||WF-EN 13171-T5
|Waste code (EAK)||030105/170201|

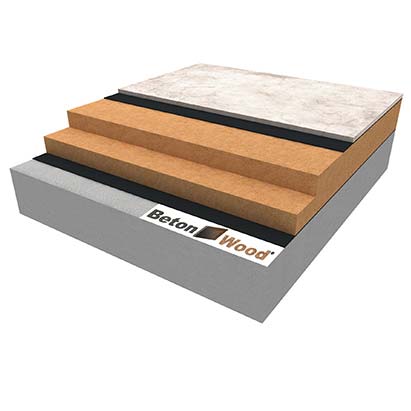

Dry system for thermal insulation of floors in wood fiber FiberTherm Roof dry and cement bonded particle boards BetonWood for an excellent thermal displacement.
Dry system for thermal insulation of floors and attics with double layer of wood fiber FiberTherm Roof dry on terracotta tiles.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm with excellent thermal insulation power on matchboarding.
Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm on matchboarding.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm with excellent thermal insulation power on terracotta tiles.
